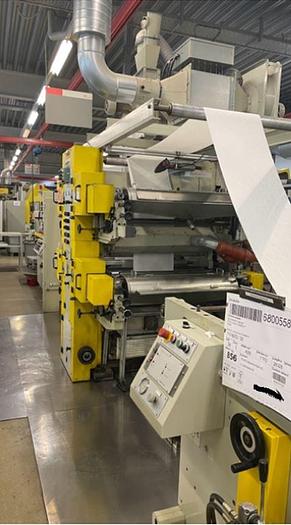

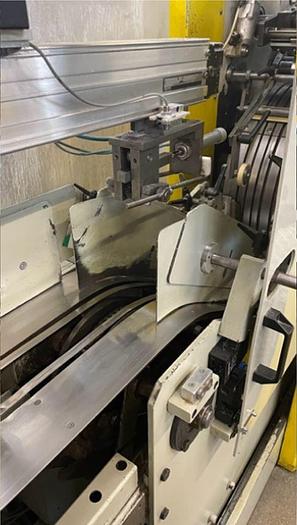

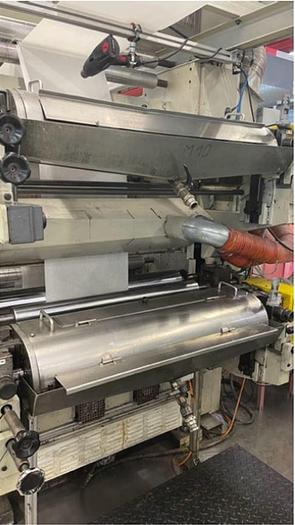

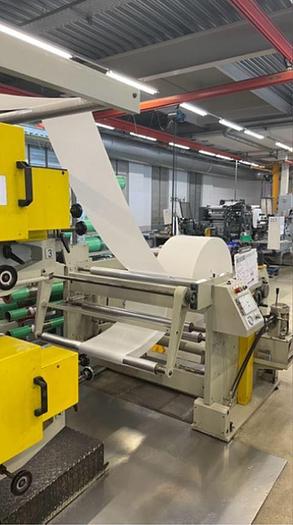

2000 Holweg RS25

Holweg RS 25 - Papierbeutelmaschine

Year 2000

Machine configuration:

- 4 printing units (Flexo)

- Roll to bag

Technical data:

- Web width paper: min. 80mm / max. 940mm

- Print width: max. 900mm

- Print length: min. 210mm / max. 460mm

- Grammage: min. 30 g/m2 / max. 100 g/m2

- Roll diameter: unwinding 1'200mm

- Sleeve diameter: unwinding 70mm

- Anilox rollers: 4 x 120 L/cm // 12cm3/m2

- Anilox rollers: 4 x 180 L/cm // 7cm3/m2

- Cliché height: 2.84mm

- Sleeve cylinder: 86.06mm

- The color tolerance is dE 3.0 (with the new CIE 2000 system)

- Print registration tolerance +/- 0.8mm

- Format tolerances:

Length +/- 10 mm

Width +/- 10 mm

Side fold +/- 5 mm

Cutting length :

250

320

360

460
