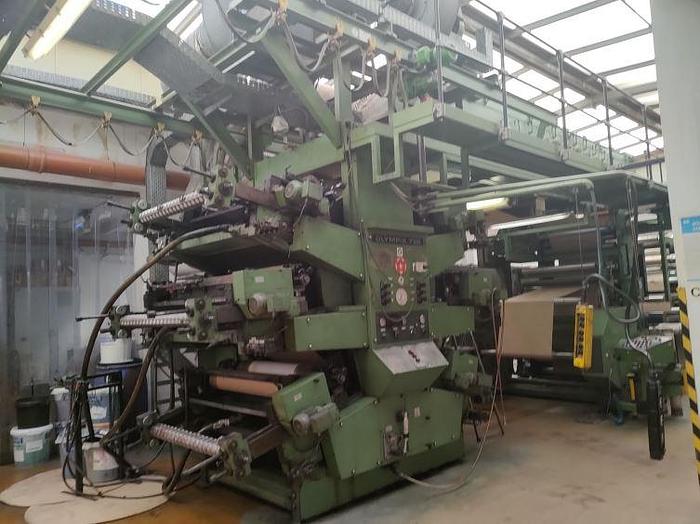

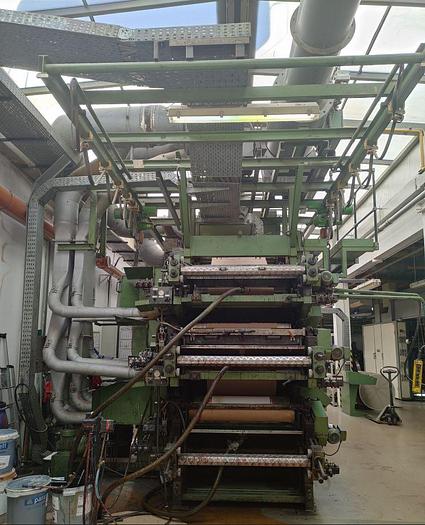

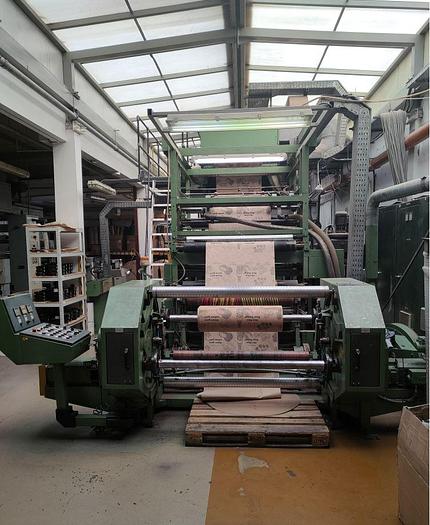

1987 WINDMÖLLER & HÖLSCHER Olympia 736 Merkur 1950

Windmöller & Hölscher

Model: Olympia 736 Merkur 1950

year: 1987

Dimensions of the machine:

• length: 16m

• width: 7m

• height: 5m

Number of printing colours 6

central cylinder with a width of 1120mm

max printing width: 1100 mm

min printing length: 300mm

max printing length: 910mm

max reel width: 1200mm

drying system: by gas

The machine has anilox ceramic rollers with liniatur;

• 4 pcs x 200 L/cm (one piece is made in the form of a river with variable linearity)

• 2 pcs x 120 L/cm

• 2 pcs x 80 L/cm

Sleeves for polymers (1.14): 6×310, 3×320, 10×330, 5×340, 6×380

Sleeves for polymers (2.84): 70×310, 60×320, 9×330, 12×340, 5×350, 3×360, 14×370, 5×380, 6×390, 5×410 6×420, 6×430, 16×440, 26×460, 6×480, 4×490, 6×510, 5×520, 6×540, 50×550, 4×560, 6×570, 5×58

Fixed rollers instead of adapters:

6 pcs x 89.243

6 pcs x 105.159

6 pcs x 124.257

6 pcs x 140.173

6 pcs x 159.271

Die-Cutting wheels: 6×310, 6×320, 6×330, 6×340, 6×360, 6×370, 6×380, 6×390, 6×400, 6×420, 6×430, 6×440, 6×460, 1×470, 6×480, 4×490, 6×510, 6×520, 6×540, 6×550, 6×560, 6×570, 6×580
