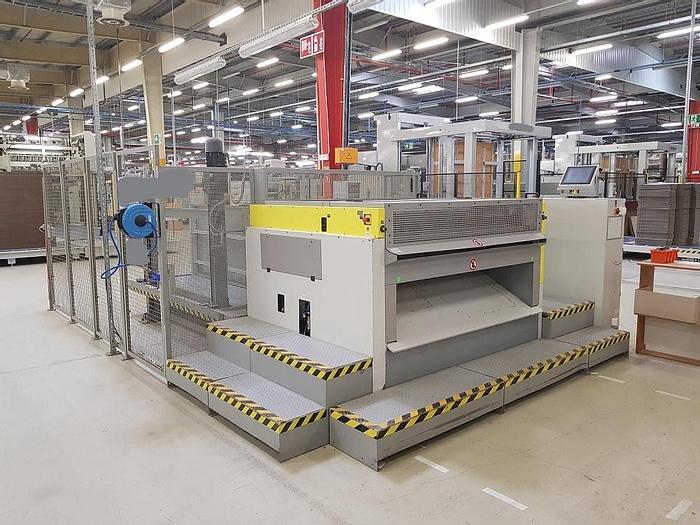

2011 Solarco Boxmatic 18 DCP

2011 Solarco Boxmatic 18 DCP

Kontaktieren Sie uns für den Preis

Washington, DC

oderanrufen +49 174 8188000

Beschreibung

Year of production 2011

Possibility of the machine:

Production of RSC, HSC, OSC, FOL – boxes from single wall or double wall cardboard;

Slit and crease the boards;

Printing of single simple marks.


External dimensions of the machine ready for work:

- Length: 5500 mm

- Width: 4060 mm

- Height: 1860 mm


B7g9znpzrk

Technical data:

- Maximum mechanical speed: 200 – 600 pcs / hour

- Maximum speed by multiproduction: up to 2000 pcs / hour

- Min board width: 300 mm

- Maximum board width: 1800 mm

- Minimum board length: 600 mm

- Maximum board length (standard feeder): 4000 mm

- Maxi board thickness: 14 mm

- Min board thickness: 2,5 mm

- Additional printing area: 10 x 30 cm

- Standard slotting blade thickness: 8 mm

- Typical power requirement: 15 kW

- Absolute accuracy: +/- 4 mm

Spezifikationen

HerstellerSolarco
ModellBoxmatic 18 DCP
Jahr2011
ZustandGebraucht
