2005 Heiber&Schroeder WP1100

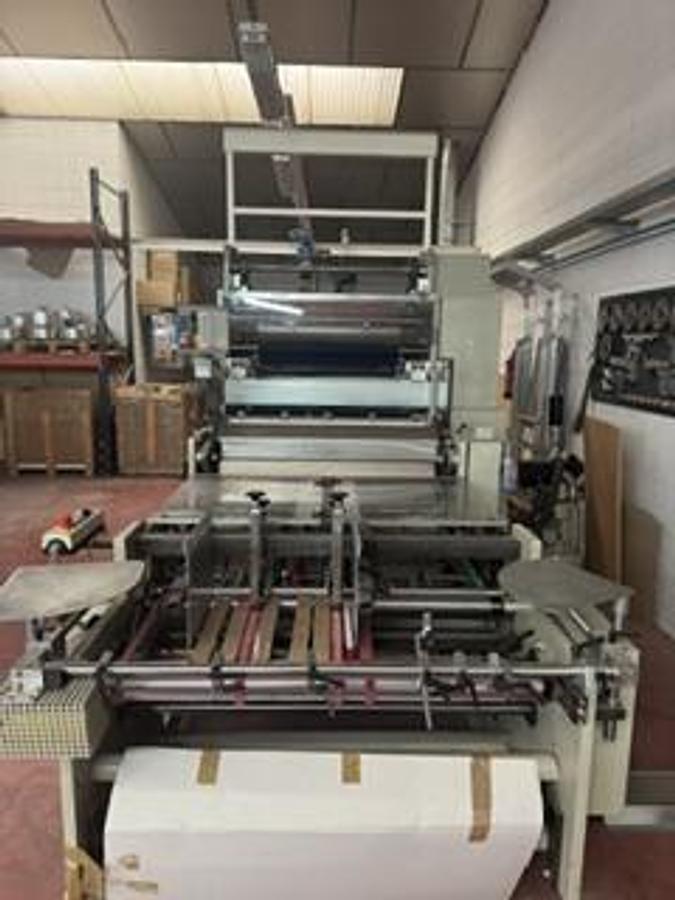

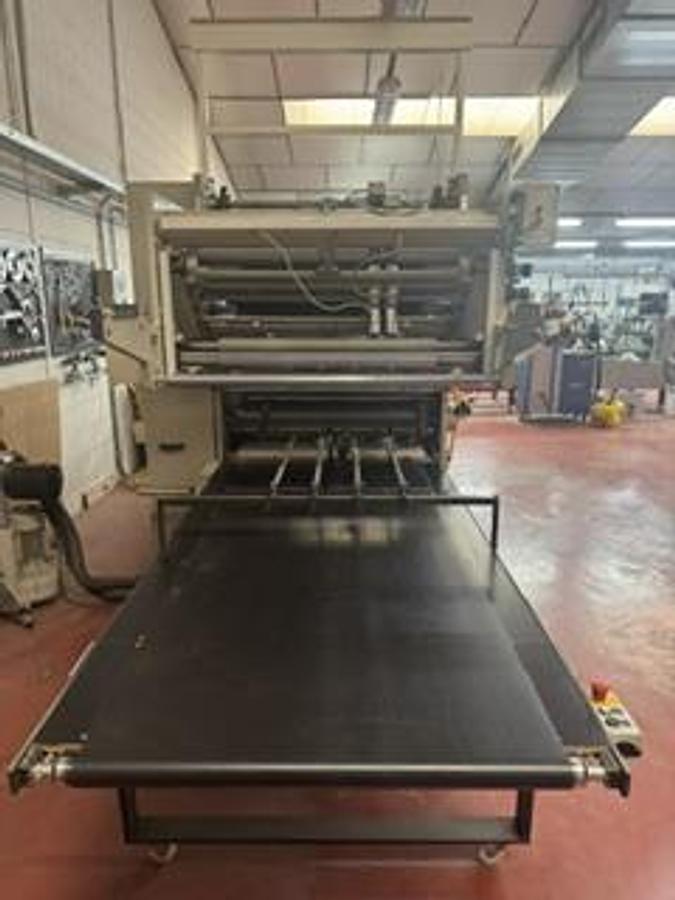

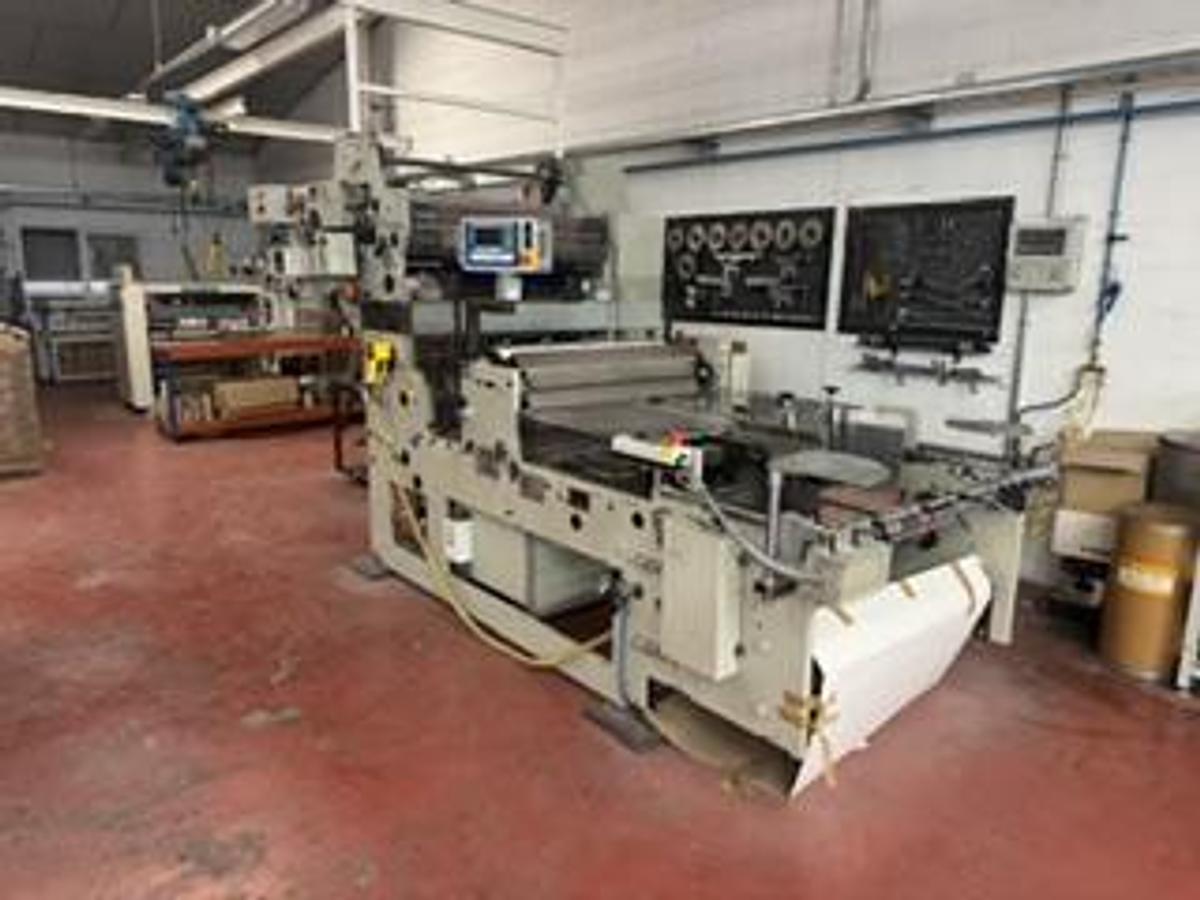

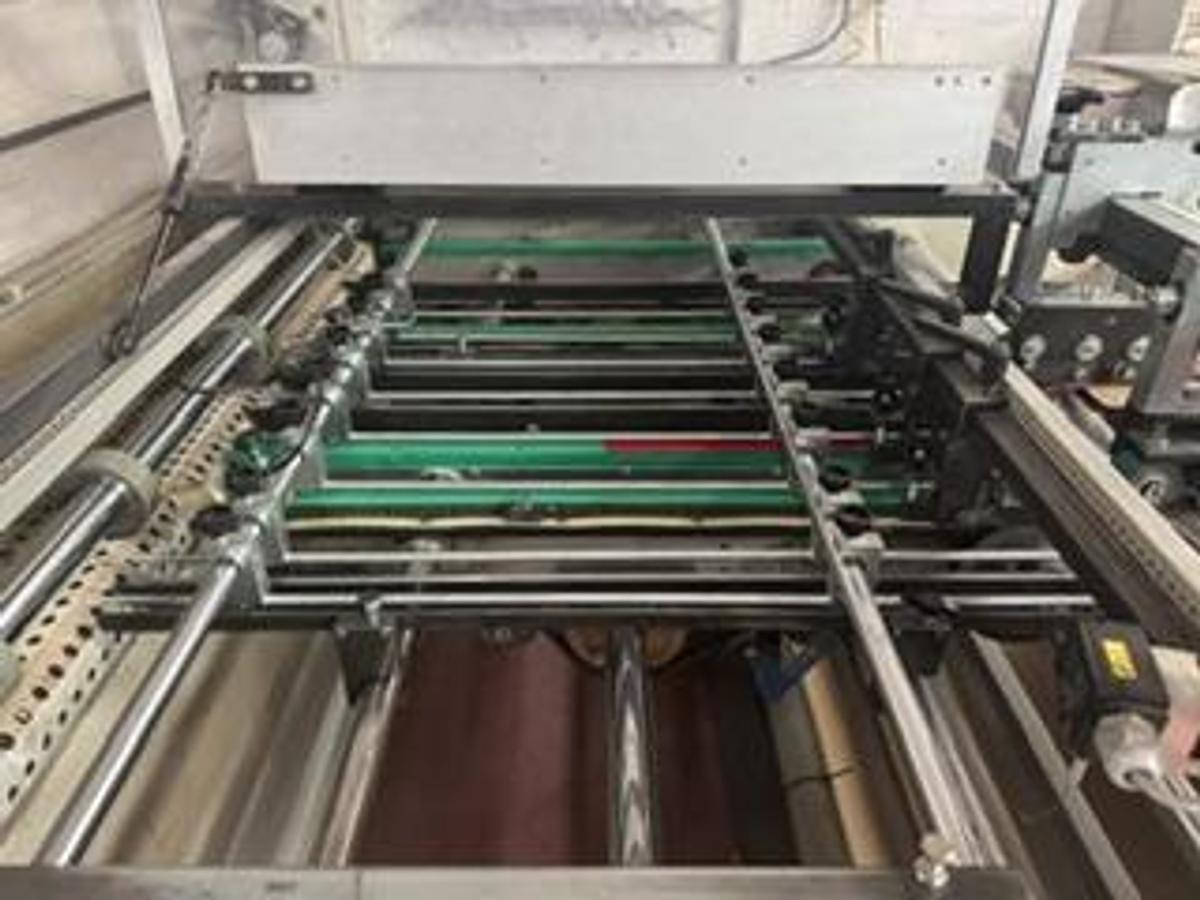

Heiber+Schröder Model WPS 1100 WINDOW GLUEING MACHINE with foil carrier DR-1100 max. 800mm x 1100mm, year of manufacture 2005

The machine is in very good condition.

Two-knife machine with punching device for side placement, incl. roll rewinder and mandrel shear

Technical data Single-track Double-track

Length A 100 - 760 mm 100 - 760 mm

Width B 80 - 1,100 mm 80 - 530 mm

Length of the foil C 50 - 560 mm 50 - 560 mm

Width of the foil D 30 - 940 mm 30 - 380 mm

Material thicknesses

Cardboard 220 – 600 g/m²

corrugated cardboard up to 5 mm thickness

PET / PE (hard film) 0.03 - 0.3 mm

PVC, PE, PS etc. 0.03 - 0.2 mm

Film winding diameter: maximum 500 mm

Core diameter: 70–80 mm

• Max. cutting format: 800mm x 1100mm
• Min. bend format: 80mm x 80mm
• Max. window format: 560mm x 940mm
• Min. window size: 30mm x 40mm
