2000 STOCK A-14 V567A/1650P

Sold

2000 STOCK A-14 V567A/1650P

Location:Alsfeld, Germany

Description

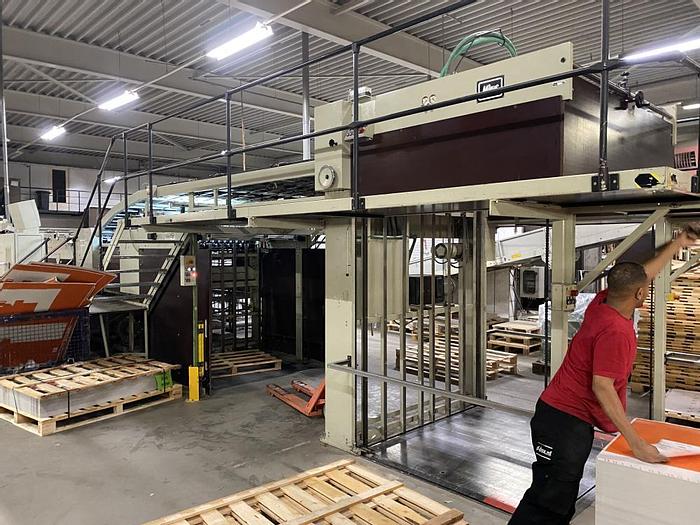

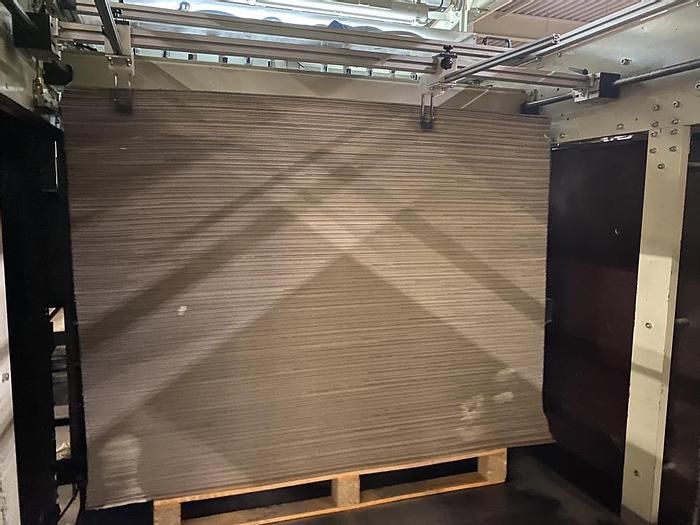

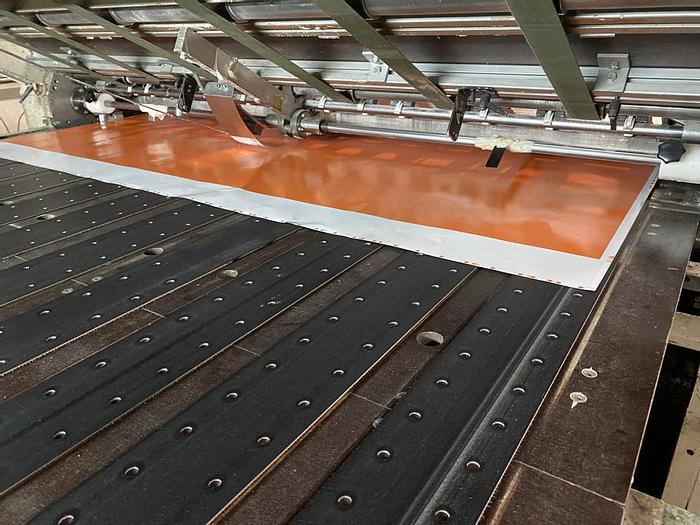

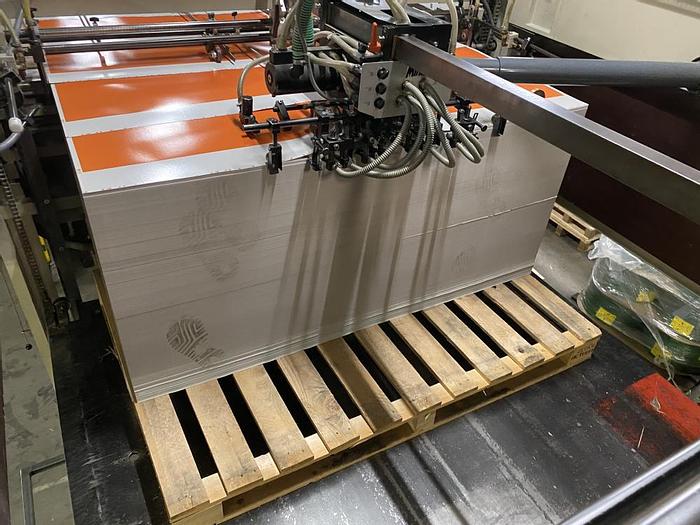

A-14 V567A / 1650P Laminating for edge or. conceal in register Year 2000 Max size: 1640 x 1640 mm Min. Size: 500 x 500 mm Carrier sheet: - one-sided corrugated cardboard, E / B and F flute - Double-sided corrugated cardboard up to 7 mm thick - Cardboard from approx. 0.5 mm thick Cover sheet: - Cardboard from 100-800 g / sqm Tolerances: approx. +/- 0.5 mm for front and side edges Output: up to a maximum of 3000 sheets / h with 2 people Front edge feeder: - Stacking height approx. 1800 mm - Stack weight max. 1000 kg - Pallet loading from the rear Print sheet feeder: - Stacking height max. Approx. 1400 mm - Stack weight max. 1000 kg Tension: - 230/400 V, 50 Hz - Connection 3x 65 A - Control voltage 24 VDC Control: Siemens PLC control, microcontrolling system

Specifications

ManufacturerSTOCK
ModelA-14 V567A/1650P
Year2000
ConditionUsed
Stock Number10249
Max. speed3000 Sh/h
Max. format1620x1620 mm
Max. Format1620x1620 mm
Minute format500x500 mm
Min. Format500x500 mm
Available03/2021
Additional costsClick here
extra costClick here

Documents
