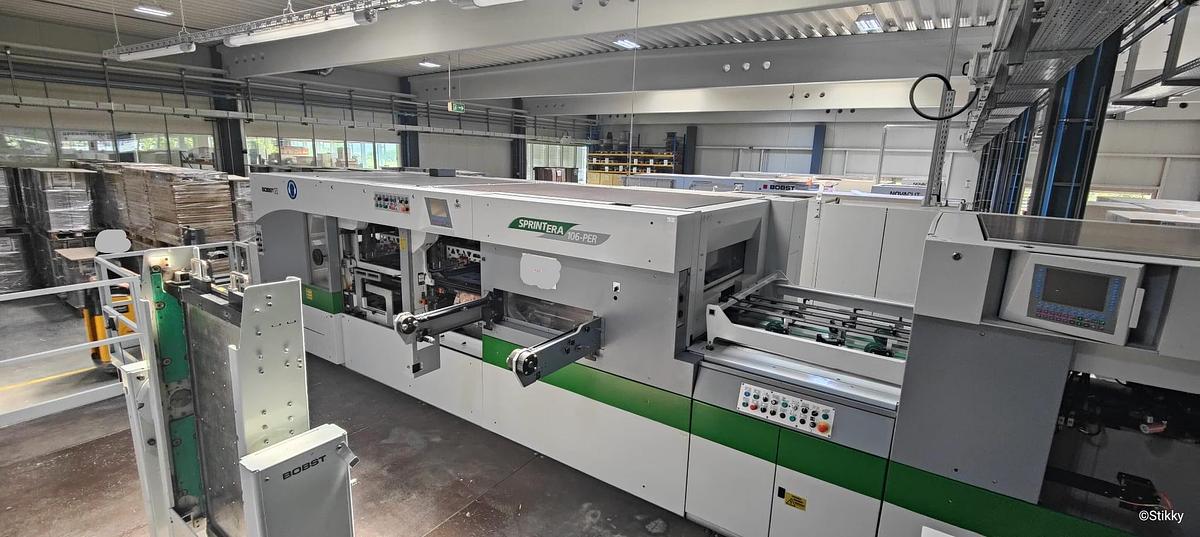

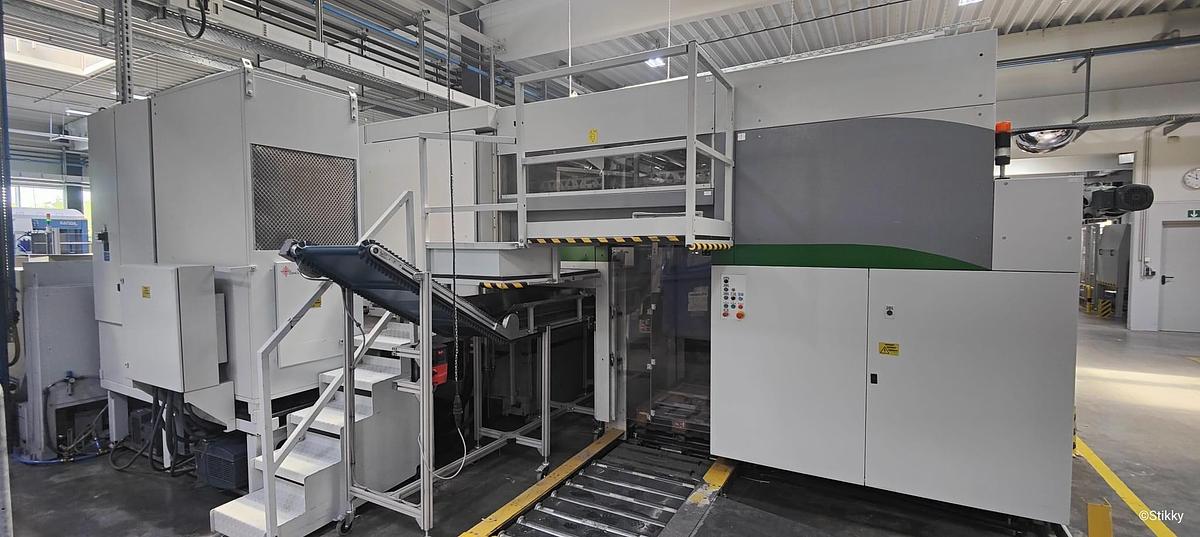

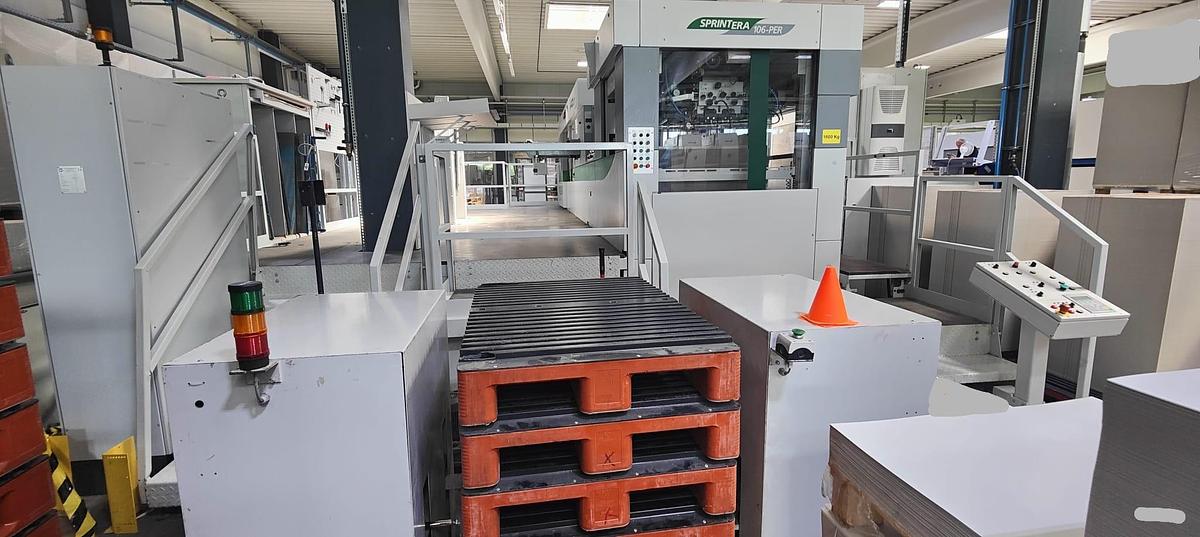

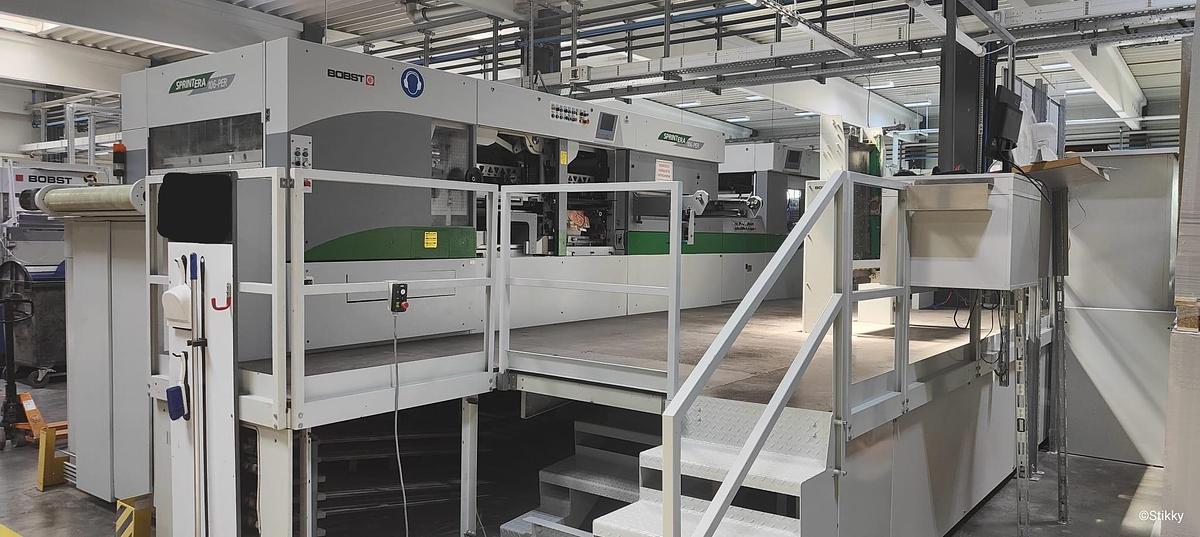

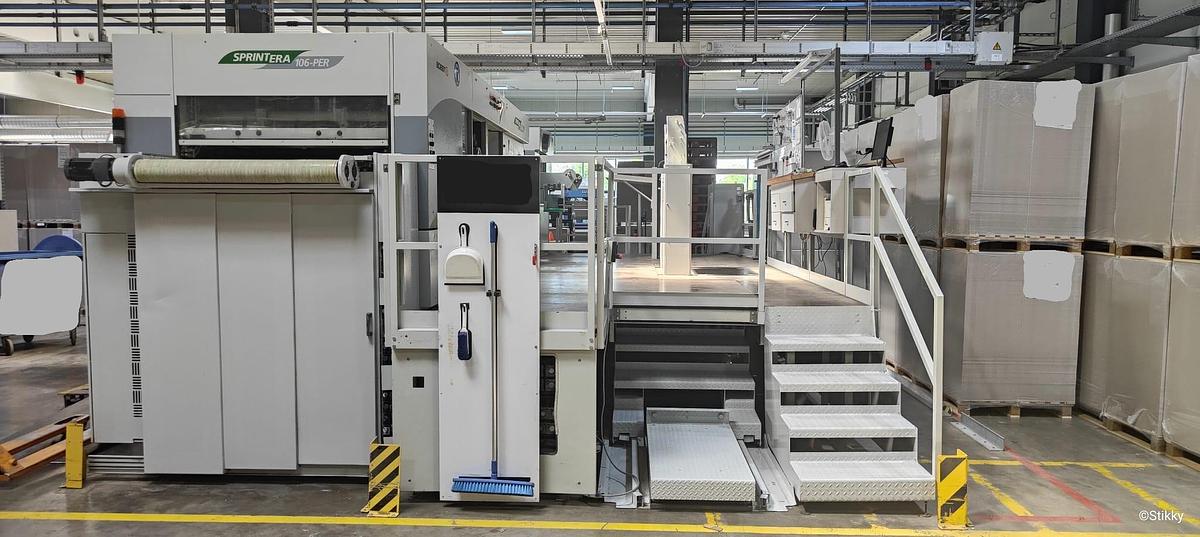

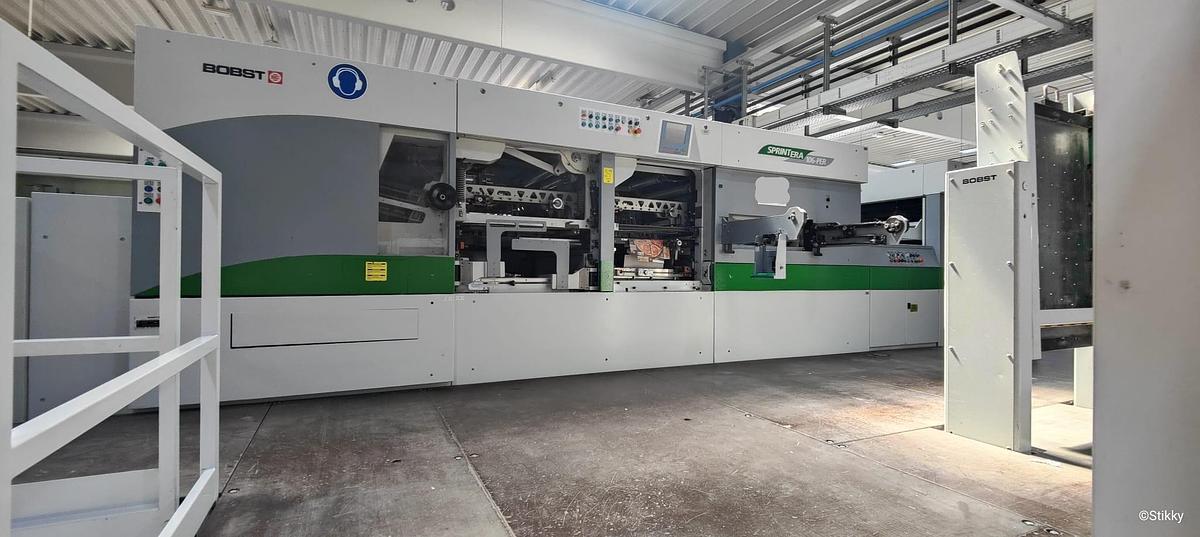

2003 Bobst Sprintera

Bobst SPrintera 106 PER,

Last overhauling in 2023

The machine is in EXCELLENT condition, can be inspected in production at any time and is immediately available.

Machine Specs:

NON Stop Feeder with automatic lateral shifting of the pile tray

Feeder with POWER REGISTER, double sheet control and automatic tension control and sheet guide

Krifft & Zipsner Pallet Infeed System

Die Cutting Unit with Centerline System

2 Stripping Stations with Bernoulli System

Blank Pile Delivery with automatic pallet changing device

Technical Details:

Paper  min. 70 g/m2

Board up to 2000 g/m2

Corrugated board, up to 4 mm

Max. sheet size: 740mm x 1060mm / 29″ x 41.75″

Min. sheet size: 350mm x 400mm / 350mm x 400mm / 14″ x 15.75″

Max. mechanical speed: 12000 s/h

Cutting force up to 2.6 MN

Max. pile height feeder and delivery: 1700 mm / 67″

Main motor power: max. 22 kW

Total connected load: max. 63 kVA

Krifft & Zipsner logistic installation, new hydraulic pump and change of all worn out parts.
